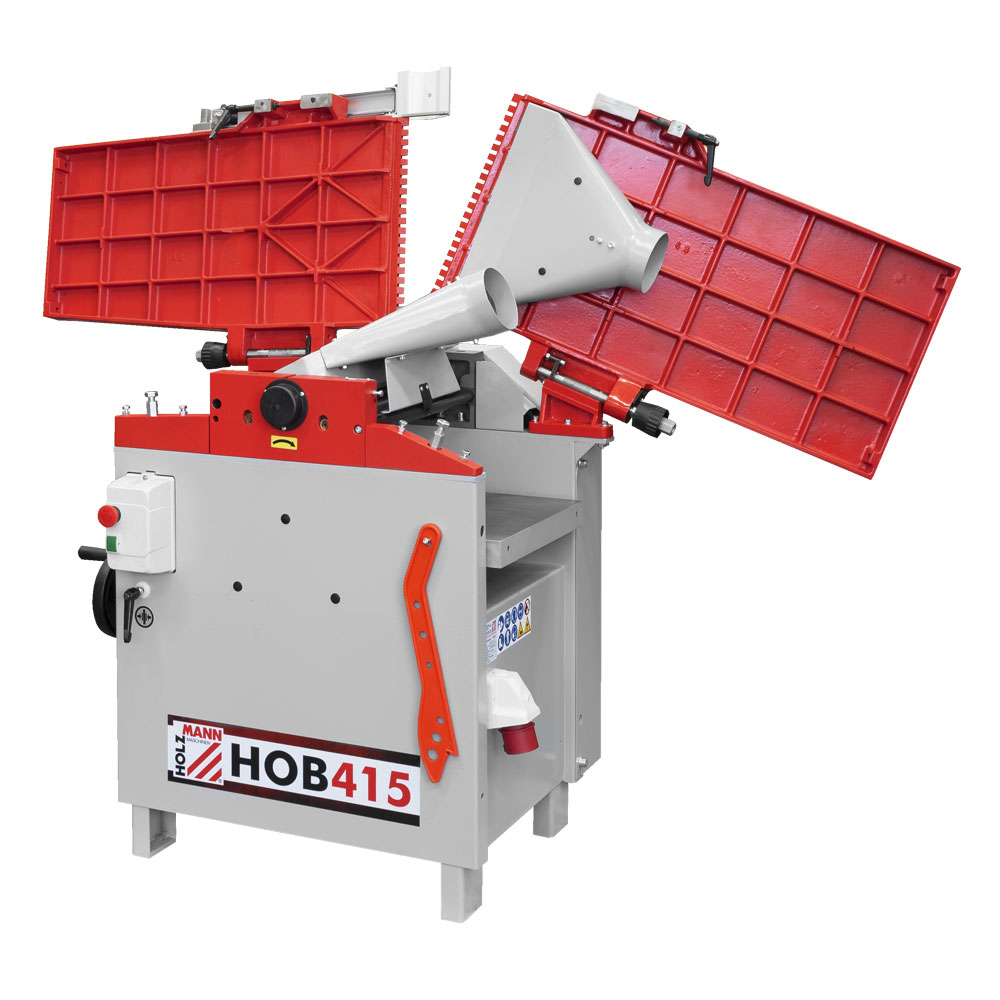

Holzmann Surface & Thickness Planer, Maschinenhandel Gronau, HOB415_400V

Distributor

  • High quality workmanship
  • Gray cast iron table with ground surface
  • 3-knife shaft with precision bearings
  • Thickness table with central column guide; Additional guide and scale for stroke display
  • folding planing tables
  • Stable planing fence can be swiveled 90 ° -45 °
  • 405mm thickness planing width and 410mm dressing width

Scope of delivery: strip planer knife (410 x 3 x 30mm) mounted, planer fence; Planer knife setting gauge

Read More
Motor power S6: 4000W
tension: 400V / 3 / 50Hz
weight: 426kg
Thicknesser table size in mm: 750 x 408
Installation dimension in mm: 1860 x 735 x 1085
Passage height in mm: 230
Table height in mm: 890
Extraction connection in mm: 120
Feed rate : 7m / min
