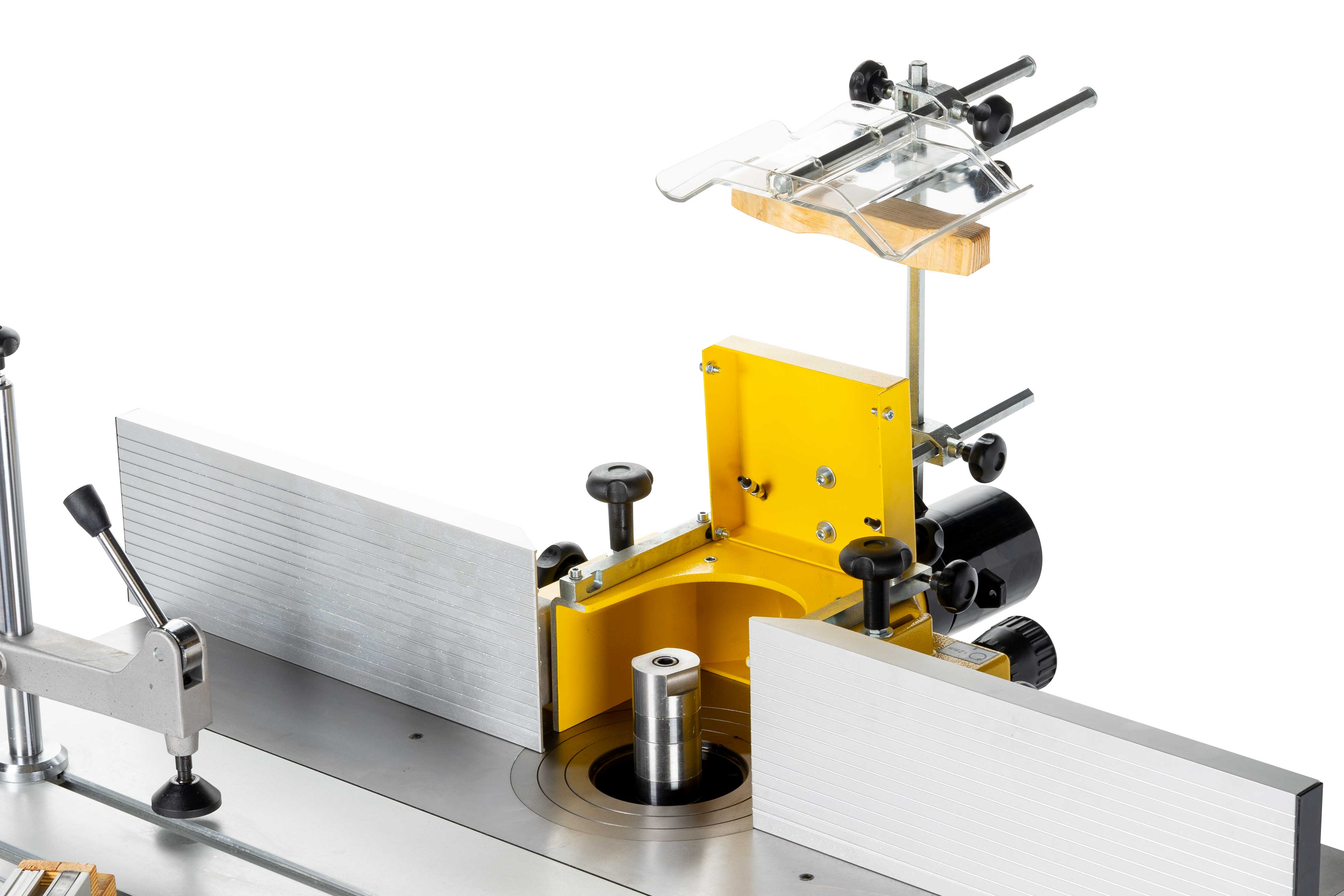

Holzmann, Table Milling Machine With Swivel Spindle, Maschinenhandel Gronau, FS300

Distributor

Spindle shaper with sliding and outrigger-table

  • heavy, very high-quality overall design
  • high quality hood with down holder and fence fine adjustment
  • 4 spindle speeds
  • tiltable spindle adjustable via handwheel
  • dust collection below the sliding table
  • Dimensions (L x W x H):
    • 2155 x 990 x 1430 without sliding table
    • 2155 x 2400+(1150) x 1430 with sliding table

Included in delivery: Format sliding table incl. outrigger table and cross-cut fence and spindle shaper hood.

Read More
motor power s1: 3000W
motor power s6: 4000W
voltage: 400V / 3 / 50Hz
table size in mm: 1000 x 350
table height in mm: 890
sliding table in mm: 1000x310
suction port in mm: 100
weight: 343.50kg
milling spindle diameter in mm: 30
milling spindle speed in min-1: 1400 / 3500 / 6000 / 8000
max. tool diameter below table in mm: 170 (90°) , 100 (45°)
