Walkthrough Metal Detecetor, PD 6500I
| Maximum Pass-Through Speed | 15m/sec |
| Optics | 2 Infrared |
| Initialization Time | 1 second |
| Sensitivity | Up to 200 distinct sensitivity levels |
| Calibration | Automatic and manual calibration |
| Battery Pack (optional) | 10-hour (additional backup available upon request |
Avtech Analog Camera-AVC167
| Resolution | 700TVL |
| Lens | f3.8mm ~ f9.5mm |
| IR EFFECTIVE DISTANCE | Up to 15 meters |
| Weather/ vandal proof | IP66 |
| Pick-up Element | 1/3 |
| IR LED | 17units |
| Power Source (±10%) | DC12V |
| IR Effective Range | Up to 15 meters |
Avtech Analog Dome Camera - KPC133EW
| Resolution | 600TVL |
| Lens | f3.6mm / F2.0 |
| IR EFFECTIVE DISTANCE | Up to 15 Meters |
| IR LED | 21 units |
| Dimensions (mm)** | 94.1(?) x 70.7(H) |
| Power Source (±10%) | DC12V |
| Video Output | 1.0 Vp-p composite, 75? |
| Brand | Avtech |
| Type | Analog camera |
Avtech Analog Camera-AVC163
| Resolution | 700TVL |
| Lens | f3.6mm / F2.0 f3.8mm / F1.5 |
| IR EFFECTIVE DISTANCE | Up to 10 meters Up to 15 meters |
| IR LED | 12units |
| Video Output | 1.0 Vp-p composite, 75? |
| Power Source (±10%) | DC12V |
| Dimensions (mm)** | 131(Ø) × 95(H) |
| Current Consumption (±10%) | 70mA (IR OFF), 200mA (IR ON) |
Avtech Push Video DVR-AVC798HD-16CH H 264
| Video input | 16 channels |
| video system | NTSC/PAL (auto -detection) |
| audio | 4 audio inputs, 2 audio outputs |
| video output(VGA) | YES (output resolution up to 1600x1200) |
| video output(full HD) | YES (HDMI) |
| MAX. ONLINE USERS | 10 |
| compatible operating systems | windows & mac |
| compatible devices | iphone, ipad, android mobile phones, windows mobile |
| Brand | Avtech |
| Type | DVR |
8CH H 264 Push Video DVR, AVC796HD
| Video System | NTSC / PAL (auto detection) |
| Video Compression Format | H.264 |
| Video Input | 8 channels |
| Video Output (VGA) | Built-in (Output resolution up to 1600 x 1200) |
| Video Output (Full HD) | Built-in (Output resolution up to 1600 x 1200) |
| Audio | 4 audio inputs, 2 audio outputs |
| Power Source (±10%) | DC 19V |
| Power consumption (±10%) | 64W |
| Compatible Operating System | Windows & MAC |
| Alarm I/O | 2 inputs (Push Video), 1 output |
| IR Remote Control | Yes (IR receiver built-in) |
| Motion Detection Area | 16 × 12 grids per channel |
4CH H 264 Push Video DVR, AVC704HD
| Resolution | 700TVL - 1000TVL |
| Video output | full HD |
| Video recording | 960H |
Network Camera, AVP571
| Resolution | 1920x1080, 280x720, 720x480, 352x240 |
| Lens | f6.0 ~ 60.0mm / F2.0 (Wide) ~ F2.8 (Tele) |
| Weather/ Vandal proof | IP67 |
| Shutter Speed | 1 / 60 (1/50) to 1 / 100,000 sec. |
| RAM | 20MB |
| Power Source (±10%) | DC12V, 1A |
| Power Consumption (±10%) | 9W |
| weight | 2.2kg |
Network Camera, AVM532F
| Resolution | 1920x1080, 1280x720, 720x480, 352x240 |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| IR effective distance | Default: up to 20 meters IR Enhanced Mode: up to 30 meters |
| Weather/ Vandal proof | IP66 / IK08 |
| LAN Speed | 10/100 Based-T Ethernet |
| Frame Rate | 30fps |
| Shutter Speed | 1/10,000 ~ 1/7.5 (Slow shutter) |
| RAM | 20MB |
| Power Source (±10%) | DC12V / 1A |
| weight | 1.5kg |
Network Camera, AVM521-CEIL Push Video
| Resolution | 1920x1080/ 1280x720/ 720x480/ 352x240 |
| lens | f3.8mm / F1.5 |
| IR effective distance | Default: up to 15 meters |
Network Camera, AVM2200T
| Resolution | 1920x1080 1280x720 720x480 352x240 |
| lens | f3.8mm / F1.5 |
| IR effective distance | 10 meters |
| weight | 0.25kg |
| Power Source (±10%) | 12V / 1A |
| Frame Rate | 30/25fps |
| Weather-proof | IP66 |
| IR LED | 12 Units |
| LAN Speed | 10/100 Based-T Ethernet |
Avtech Network Camera-AVZ592
| Resolution | 1920x1080/ 1280x720 /720x480/ 352x240 |
| Lens | f4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele) |
| IR effective distance | Default: Up to 200 meters IR Turbo mode: More than 200 meters |
| weather proof | IP66 |
| LAN Speed | 10/100 Based-T Ethernet |
| Data Transmission Speed | 10/100/1000 Based-T |
| Frame Rate | 30 fps |
| IR LED | 8units |
| weight | 6.9kg |
| Power Source (±10%) | AC 24V / DC19V |
| Current consumption (±10%) | DC19V / 1.3A |
| Brand | Avtech |
AVtech Network Camera-AVN420
| Resolution | 1920x1080/ 1280x720/ 640x480/ 320x240 |
| Lens | f3.8mm / F1.5 |
| IR effective distance | Up to 20 meters |
| Weather proof | IP66 |
| weight | 0.42kg |
| Power Consumption (±10%) | 5.8W |
| Current Consumption (±10%) | 480mA |
| Power Source (±10%) | 12V/ 1A |
| RAM | 20MB |
| IR led | 1 unit |
| frame rate | 30fps |
| Brand | Avtech |
| Type | Network camera |
Avtech Push Video Network Camera- AVM583
| Resolution | 1920x1080 /1280x720 /720x480 /352x240 |
| Lens | f4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele) |
| weather proof | IP66 |
| weight | 1.76kg |
| Current consumption (±10%) | 800mA |
| Power Source (±10%) | DC12V, 1.5A |
| RAM | 20MB |
| Shutter Speed | 1 / 60 (1/50) to 1 / 100,000 sec. |
| Frame rate | 30fps |
| LAN Speed | 10/100 Based-T Ethernet |
| Brand | Avtech |
| Type | Push Video Network Camera |
Network Recorder, AVH304A
| Recording throughput | Up to 120 IPS @ 1280x1024, 32 Mbps |
| HD storage | One 4TB hard disk |
| Channel | 4 |
| eSATA | 1 |
| Power Source (±10%) | DC 48V / 1.25A |
| Video input | 4 LAN ports |
| Video output | HDMI output |
| Video Output Resolution | 1920 x 1080 |
| Ethernet | 1000Mbps |
Network Recorder, AVH306
| Recording throughput | 150 IPS @ 720P, up to 32Mbps |
| HD storage | 2 HDDs |
| Channel | 6 |
| Power Source (±10%) | DC 19V / 2.1A |
| Ethernet | 1000Mbps |
| Video output | full HD output |
| Video Output Resolution | 1920 x 1080 |
| Video input | One LAN port Up to 6 Channels with a 6-port hub |
Network Recorder, AVH800A
| Recording throughput | Up to 90 IPS @ 1920x1080, 32 Mbps |
| HD storage | One 2.5” or 3.5” hard disk |
| Channel | 6 |
| eSATA | 1 |
| Video input | One LAN port (Up to 12 Channels with a hub) One LAN port (Up to 6 Channels with a hub) |
| video output | HDMI |
| Video Output Resolution | 1920 x 1080 |
| Audio Output | YES (Line Out / HDMI) |
| Ethernet | 1000Mbps |
| Power Source (±10%) | DC12V / 3A |
| Power Consumption | < 9.5W (without a hard disk installed) |
| weight | 1.6kg |
8CH HD Video Recorder, AVH0801
| Hard disk storage | One 4TB hard disk |
| eSATA | YES |
| Audio output | HDMI |
| Video output | HDMI |
| Video Output Resolution | 1920 x 1080 |
Avtech Network Recorder-AVH316
| Recording throughput | 120 IPS @ 1920x1080, up to 48Mbps 80 IPS @ 2048x1536, up to 48 Mbps |
| Hard disk storage | 2 |
| Channel | 16 |
| eSATA | 1 |
| Video Input | One LAN port (up to 16 IP cameras) |
| Video Output | HDMI & VGA |
| Video Output Resolution | 1920 x 1080 |
| weight | 2.122kg |
| Brand | Avtech |
| Type | Network recorder |
Network Recorder, AVH312PV
| Recording throughput | 120 IPS @ 720P, up to 32Mbps |
| Hard disk storage | 2 HDDs |
| Channel | 12 |
| eSATA | 1 |
| weight | 2.122kg |
| Power Source (±10%) | DC 19V / 2.1A |
| Video Output Resolution | 1920 x 1080 |
| Video Input | One LAN port (Up to 12 Channels with a 12-port hub) |
| Video Output | HDMI |

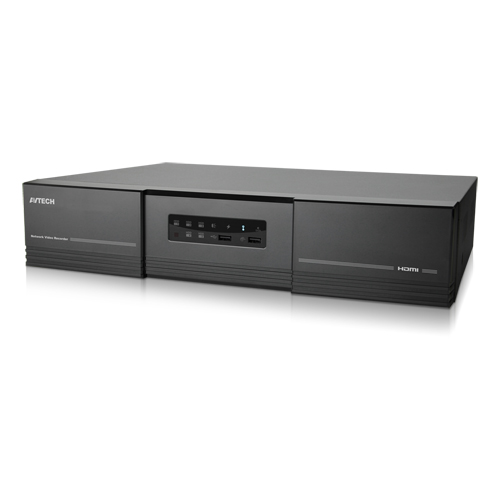

Network Recorder, AVH516A
| Recording throughput | Up to 480 IPS @ 1920x1080, Up to 120Mbps |
| Hard disk storage | Three 4TB hard disks |
| Channel | 16 channels |
| eSATA | 1 |
| weight | 4kg |
| Power Source (±10%) | DC19V / 3.42A |
| Video Output Resolution | 1920 x 1080 |
| USB Ports | Two USB 2.0 ports |
| Video Input | One LAN port (up to 16 IP cameras) |
IR Camera, AVC472
| IR LED | 56 UNITS |
| IR Effective Range | Up to 40 meters |
| Lens | f6.0mm / F1.4 |
| Lens Angle | 62° |
| Power Source (±10%) | DC12V / 1A |
| Current Consumption (±10%) | 70mA (IR OFF), 590mA (IR ON) |

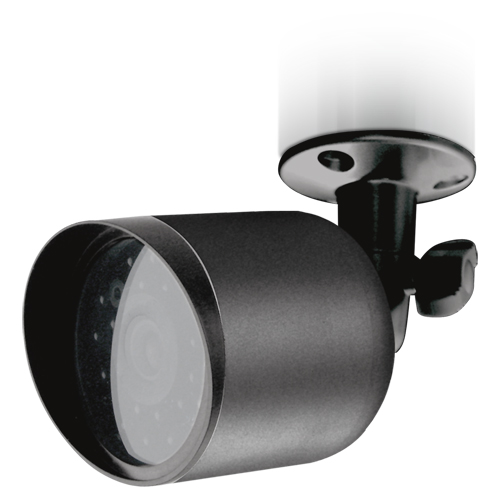

Avtech Analog Camera-KPC136ELT-H
| Resolution | 600TVL |
| Lens | f3.6mm / F2.0 |
| IR effective distance | Up to 15 Meters |
| weather proof | IP67 |
| Power Source (±10%) | DC12V |
| IR LED | 21 units |
| Lens Angle | 92.6° |
| Video Output | 1.0 Vp-p composite, 75? |
| Current Consumption (±10%) | 70mA (IR OFF), 270mA (IR ON) |
| Brand | Avtech |
| Type | Analog Camera |
Avtech Analog Camera-AVC169
| Resolution | 700TVL |
| Lens | f6.0mm / F1.4 |
| IR effective distance | Up to 40 meters |
| weather proof | IP67 |
| IR led | 56units |
| Lens Angle | 56.6° (Diagonal) / 46.6° (Horizontal) / 34.8° (Vertical) |
| Video Output | 1.0 Vp-p composite, 75? |
| Power Source (±10%) | DC12V |
| Current Consumption (±10%) | 70mA (IR OFF), 590mA (IR ON) |
| Brand | Avtech |
| Type | Analog camera |
Avtech CCTV Camera-KPC148-H
| Resolution | 520TVL |
| Power Source (±10%) | DC12V |
| Lens | f6.0mm / F2.0 |
| Electronic Shutter | 1/60 (1/50) to 1/100,000 sec |
| Brand | Avtech |
| Type | CCTV camera |
